Oil sludge pyrolysis plant is the most ideal equipment to treat the oil sludge and reuse the crude oil in the sludge. In order to control the operation and safety, it is designed with control cabinet and automatic alarm device.

We provide free trial service.

You can also visit our factory.

  • Tel: +86-135-2669-2320
  • WhatsApp: 008613526692320
  • Skype: bonniezhao2
  • Phone: + 86-371-56771821
  • Email: sales@doinggroup.com

The oil sludge pyrolysis plant is the most ideal equipment to treat the oil sludge and reuse the crude oil in the sludge. Oil sludge is a by-product of the exploration, drilling, storage, and refining of petroleum resources. It is mainly composed of crude oil, water, sludge and so on. If not treated effectively, the oil sludge will cause great pollution to the environment. And because there is so much oil in the sludge, some investors are finding opportunities. They are eager to find environmentally friendly ways to dispose of oil sludge that will benefit them. DOING oil sludge pyrolysis plant will be their most sensible choice.

oil sludge pyrolysis plantEnvironmental pollution caused by oil sludge

DOING company's oil sludge pyrolysis plant adopts the most advanced pyrolysis technology to extract high-quality fuel oil from the oil sludge. This way not only solves the pollution caused by the oil sludge to the environment, but also the fuel oil obtained from the oil sludge can bring rich economic benefits for investors. In addition, some countries and regions have government subsidies for companies or individuals dealing with oil sludge. This has also prompted some investors to turn to oil sludge treatment projects.

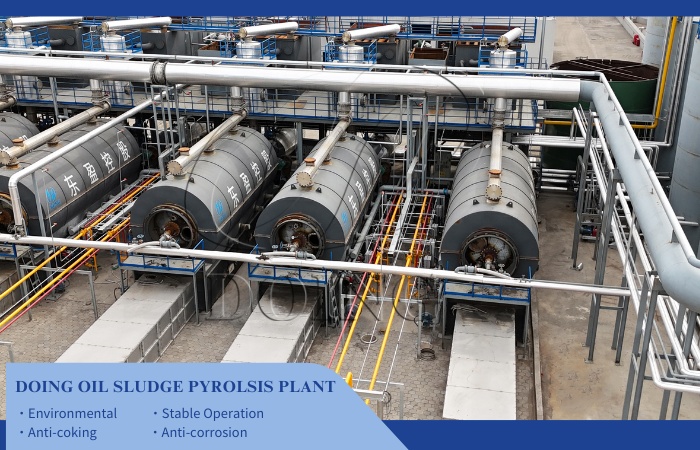

oil sludge pyrolysis plantDOING company's oil sludge pyrolysis plant

In order to meet the needs of different customers, we have designed different types of oil sludge pyrolysis plant. The following are the specific parameters of several devices. If you have special requirements, we can also design and produce according to your specific requirements.

No.

Items

Contents

1

Equipment type

DY-1-6

DY-1-10

DY-1-12

2

Raw material

Waste tyre

Waste tyre

Waste tyre

3

Structural form

Horizontal rotation

Horizontal rotation

Horizontal rotation

4

24-hour Capacity

6 ton

10 ton

12 ton

5

Oil yield

2.7-3.3ton

4.5-5.5ton

4.5 -5.5ton

6

Operating pressure

Normal

Normal

Normal

7

Material of pyrolysis Reactor

Q245R

Q245R

Q245R

8

Thickness of pyrolysis Reactor

16mm

16mm

16mm

9

Rotate speed of pyrolysis Reactor

0.4turn/minute

0.4turn/minute

0.4turn/minute

10

Total power

19KW

19KW

19KW

11

Mode of cooling

Water cooling

Water cooling

Water cooling

12

Cooling area of condenser

100sqm

100sqm

100sqm

13

Kind of transmission

Internal gear drive

Internal gear drive

Internal gear drive

14

Noise dB(A)

≤85

≤85

≤85

15

Size of Reactor(D×L)

2200×6000

2600×6600

2800×6600

16

Working form

Intermittent operation

Intermittent operation

Intermittent operation

17

Delivery time

20days

20days

20days

18

Weight

27T

32T

35T

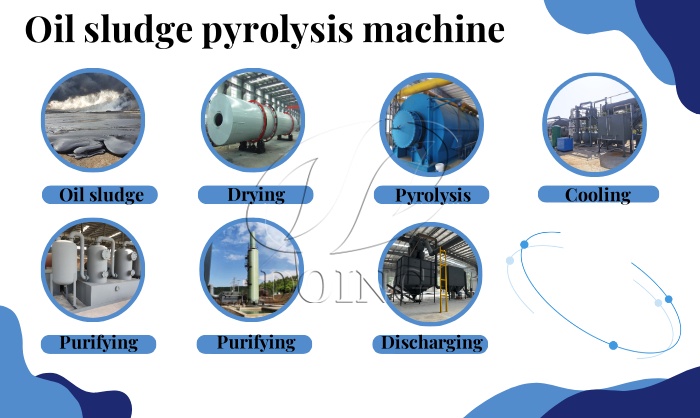

The oil sludge pyrolysis plant produced by DOING company mainly consists of screw feeder, pyrolysis reactor, condenser, oil-gas separator, water seal, negative pressure system and exhaust gas purification system. In order to control the operation and safety, our equipment is designed with control cabinet and automatic alarm device, so as to control the operation and prevent the occurrence of some misoperation.

End products of oil sludge pyrolysis plant

sludge oil pyrolysis plantEnd products of oil sludge pyrolysis plant

1. Fuel oil

The fuel oil is of high quality. It can be used directly as a fuel, of course, you can also use waste oil refining equipment to refine it into diesel;

2. Solid waste

Solid waste can be used to make bricks for buildings or to pave roads.

The unique advantages of DOING oil sludge pyrolysis plant are as follows

1. The heating system of DOING oil sludge pyrolysis plant can use a variety of fuels, such as fuel oil, fuel gas, coal, wood, etc., and can also directly use combustible gas generated in the pyrolysis process to reduce the cost;

2. It can handle a wide range of raw materials. In addition to oil sludge, it can deal with the life of waste tires, waste plastic, waste rubber and other organic matter;

3. It equipped with exhaust gas purification system, water seal, etc., the whole production process is ecologically friendly, with emissions up to eu environmental standards;

3. DOING oil sludge pyrolysis plant adopts the most advanced pyrolysis technology and high-quality equipment to manufacture materials to improve the output and quality of oil products and extend the service life of pyrolysis reactor;

oil sludge pyrolysis plantDOING company

DOING company has 10 years of rich experience in this field. As a professional machinery supplier, we can provide customized service, not only has a full set of service system, from the early stage of the consultation, to the device, the choice of configuration, equipment installation, equipment operation of technical training and equipment maintenance, etc., in the late we have professional personnel tracking service.
