Plastic to fuel oil oil yield

Over 500 billion pounds of new plastic is manufactured each year and roughly 33% of that is single use and thrown away. As so little plastic is recycled, we need to reframe plastic waste as an underused resource vs. one that's destined for the landfill.

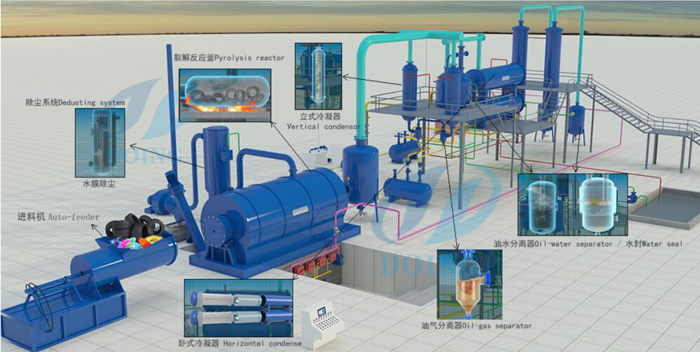

Fuel oil from plastic waste machine

Fuel oil from plastic waste pyrolysis technology is not overly complicated. plastics are shredded and then heated in an oxygen-free chamber (known as pyrolysis) to about 400 degrees celsius. As the plastics boil, gas is separated out and often reused to fuel the machine itself.

Fuel oil from plastic waste?

Plastic to fuel oil working process

2. The fuel oil from plastic waste machine includes two stages. From 100℃ to 250 ℃ is the preliminary stage. The light oil gas shall be released at 100 ℃ and fluid oil shall be released at 120℃ . From 280℃ to 350℃is the top output rate interval. Oil gas will be collected into manifold, heavy particles and oil will be gathered and liquefied in center of manifold and drop down into the heavy oil tank. The lighter gas will rise up to the multi-functional oil condensers, then be liquefied into oil and stored in the oil tank. The incondensable gas through de-sulfuration and de-dusting by hydroseal will be led to heat the furnace for reducing the energy cost.

3. Cool down the plastic pyrolysis reactor after the process. Carbon black will be discharged automatically when the temperature falls down to 50-70 degrees.

Fuel oil application

The plastic pyrolysis oil can be sold directly as fuel. Or be transformed into gasoline or diesel by the plastic oil distillation plant. The refined plastic pyrolysis oil can be used for heavy oil generator to produce electricity.
