Recycling old tyre to fuel oil?

DATE：2018-03-07 11:37/ FAQ products

Recycling old tyre to fuel oil machine

Doing recycling old tyre to fuel oil machine can help us recycling a large amout of old tyre,and we can get fuel oil ,carbon black and steel wire by pyrolysis technology.

Recycling old tyre to fuel oil?

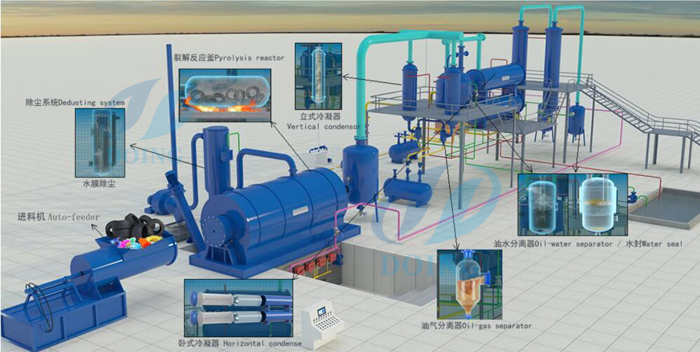

Recycling old tyre to fuel oil machine

Firstly, we put raw materials into reactor by auto-feeder, then heat the reactor with coal/ wood/natural gas/oil.when the temperature reach around 250 degree celsius oil gas will produce.

Secondly, liquid oil will be cooled out by cooling system from oil gas, which is collected by oil tank.

Thirdly, the waste gas which can not be cooled out in normal pressure will be recycled to heat reactor,not only saving energy, but also protecting environment.

Fourthly, the dark smoke produced by heating reactor can achieve national emission standard through dual desulfurization and dusting removal device.

Fifthly, the temperature of reactor will be low after we get oil, at this moment carbon black will be discharged automatically.

Lastly, when the temperature falls to 100 degree celsius, worker could put steel wire hook to reactor to take steel wire out, then another batch will be begin.

Fuel oil application

The tyre pyrolysis oil can be sold directly as fuel. Or be transformed into gasoline or diesel by the tyre oil distillation plant. The refined tyre pyrolysis oil can be used for heavy oil generator to produce electricity.
